Mastering Linux blockdev: Query, Lock, and Tune Block Storage

Overview

Effective disk management in Linux demands low-level control over drive parameters and kernel caching policies. The blockdev command-line utility provides direct access to these block device ioctl interfaces. This walkthrough demonstrates how systems engineers inspect sector geometries, enforce read-only safety locks, and tune read-ahead buffers using an isolated virtual drive.

Setting Up an Isolated Loopback Device for Safe Testing

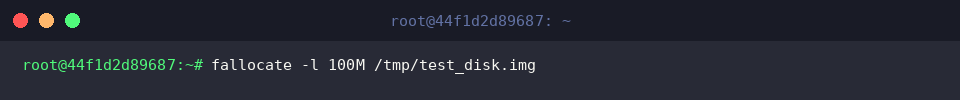

Before applying low-level operations to live disks, spin up an isolated 100MB disk image by executing fallocate -l 100M /tmp/test_disk.img in a temporary path.

Creating a 100MB sparse disk image

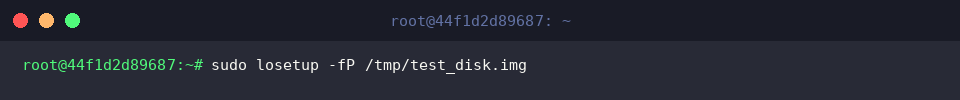

Transform the raw file into an active block device node with sudo losetup -fP /tmp/test_disk.img, which requests the kernel to attach the image to the next available loop slot.

Binding raw disk image to loop device

To avoid hardcoding dynamic device nodes in subsequent terminal commands, assign the assigned node to a shell variable via LOOP_DEV=$(losetup -j /tmp/test_disk.img | cut -d: -f1).

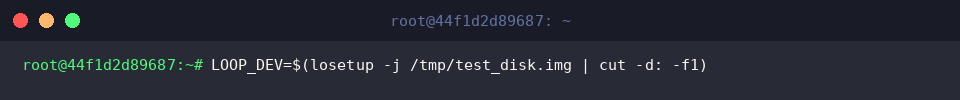

Resolving loop device path into variable

Operating as a command-line wrapper around block layer ioctls, blockdev allows administrators to query hardware traits and adjust runtime parameters.

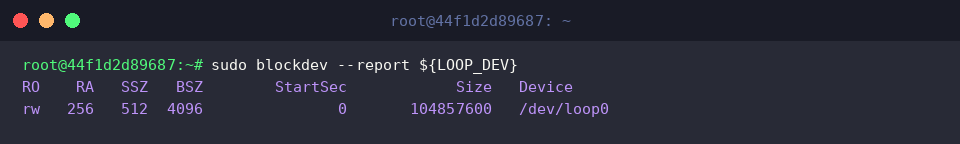

Invoking sudo blockdev --report ${LOOP_DEV} aggregates the storage target’s runtime properties into an orderly summary table showing read-only flags (RO), read-ahead limits (RA), sector sizes (SSZ), block sizes (BSZ), and overall capacity.
⚙️ [Primary Parameters]

--report : Generates a tabular overview of target device settings (RO, RA, SSZ, BSZ, StartSec, Size).
--getro : Evaluates read-only status (returns 1 for read-only, 0 for writable).
--setro : Enforces read-only mode, blocking modification attempts at the kernel layer.
--setrw : Lifts write restrictions, returning the device to standard read-write access.
--getra : Reads the active read-ahead buffer threshold in 512-byte sectors.
--setra [sectors] : Adjusts read-ahead buffer capacity to optimize sequential I/O throughput.
--getss : Returns the logical sector size in bytes.
--getbsz : Reports the current filesystem block allocation size in bytes.
--getsize64 : Outputs the total capacity of the device in raw bytes.
--flushbufs : Forces pending dirty buffer caches to commit directly to storage media.

Tabular device parameter summary report

Inspecting Total Capacity and Sector Geometry

Refresh your target reference with LOOP_DEV=$(losetup -j /tmp/test_disk.img | cut -d: -f1) before querying the virtual block device’s storage dimensions.

Querying loop target path

Verify raw storage volume down to the byte by calling sudo blockdev --getsize64 ${LOOP_DEV}.
The terminal output of 104857600 bytes matches the original 100MB volume (100 * 1024 * 1024), validating the raw image bounds.

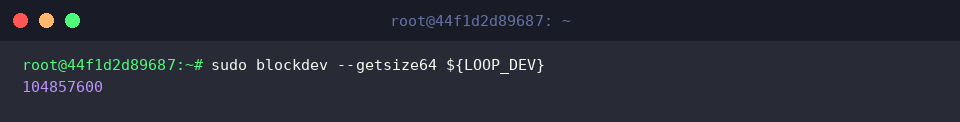

Extracting 64-bit device size in bytes

Check the atomic unit used by the operating system for addressing data via sudo blockdev --getss ${LOOP_DEV}.
A returned value of 512 confirms the block device is structured around standard 512-byte logical sectors.

Retrieving logical sector dimension

Hardware boundaries on modern media are checked with sudo blockdev --getpbsz ${LOOP_DEV}, which returns physical sector measurements.
Seeing 512 indicates symmetric logical and physical boundaries on our virtual device, preventing write-amplification penalties stemming from misalignment.

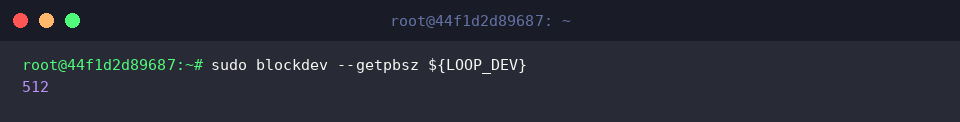

Verifying underlying physical sector size

Enforcing and Revoking Read-Only Drive Protection

Prepare the loop target variable in the current shell session by running LOOP_DEV=$(losetup -j /tmp/test_disk.img | cut -d: -f1).

Exporting target loop device path

To protect volumes during forensics, migration, or maintenance, execute sudo blockdev --setro ${LOOP_DEV} to lock out write operations directly at the driver level.

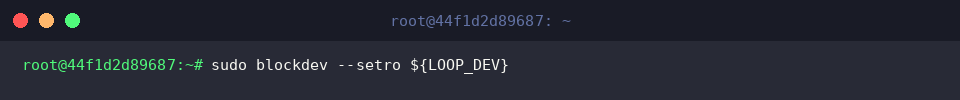

Setting hardware read-only flag

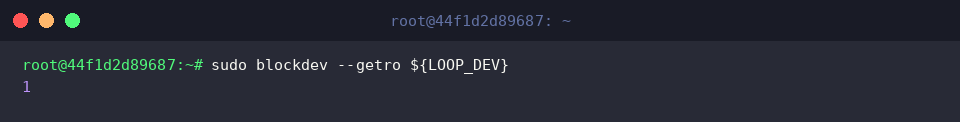

Verify whether the restriction took effect with sudo blockdev --getro ${LOOP_DEV}.
A return value of 1 confirms write access has been revoked and the drive is strictly read-only.

Checking read-only enforcement state

When modifications are required again, clear the software lock by executing sudo blockdev --setrw ${LOOP_DEV} to restore read-write capability.

Re-enabling write access to device

Audit the operational state once more using sudo blockdev --getro ${LOOP_DEV}.
A response of 0 confirms the device permits standard read and write transactions again.

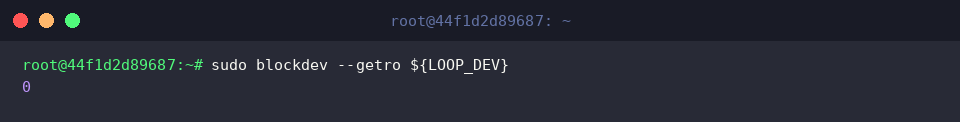

Confirming writable access status

Tuning Read-Ahead Buffers and Teardown

Reload the loopback target path into the environment with LOOP_DEV=$(losetup -j /tmp/test_disk.img | cut -d: -f1) before tuning I/O parameters.

Setting loopback device shell variable

Inspect the kernel’s prefetch queue length by issuing sudo blockdev --getra ${LOOP_DEV}.
The default output of 256 indicates the Linux page cache prefetches 256 sectors (128KB) ahead during sustained linear reads.

Querying active read-ahead sector count

For workloads streaming massive data files, expand throughput by setting sudo blockdev --setra 1024 ${LOOP_DEV} to elevate prefetching to 1024 sectors (512KB).

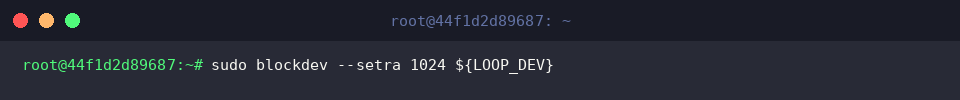

Increasing kernel read-ahead window

Ensure the new kernel parameter is active with sudo blockdev --getra ${LOOP_DEV}.
Receiving 1024 confirms the prefetch expansion has taken effect for upcoming sequential access patterns.

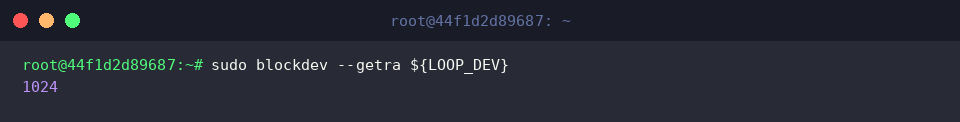

Auditing tuned read-ahead sector configuration

Once verification is complete, clean up test resources by running sudo losetup -d ${LOOP_DEV} && rm -f /tmp/test_disk.img to release loopback allocations and remove the backing file.

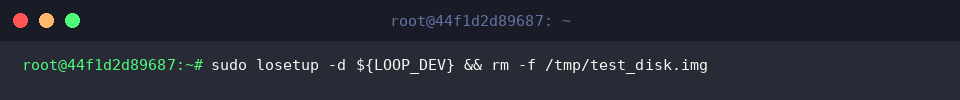

Detaching loop device and purging test image

Through blockdev, storage administrators can inspect disk geometry, safeguard data with write barriers, and tailor prefetch policies to system workloads. Always validate low-level storage tuning in staging environments before applying adjustments to production hardware.
